Custom Toroidal Transformers
KATOY designs and manufactures custom toroidal transformers with flexible electrical, winding, insulation, lead and mounting configurations for industrial power supplies, professional audio, control equipment and specialized OEM applications.
Compact Magnetic Construction for Customized Power Requirements
A toroidal transformer uses a ring-shaped magnetic core with windings distributed around the core circumference. This construction can provide a compact mechanical profile and is widely used where transformer size, mounting arrangement and equipment integration are important design considerations.
A custom toroidal transformer should be developed according to the actual electrical and mechanical requirements of the equipment. Input and output voltage, rated power, operating frequency, winding arrangement, insulation system, temperature rise, mounting method and available installation space all influence the final design.
KATOY can evaluate toroidal transformer projects from electrical specifications, mechanical drawings, reference samples or existing transformer information.
- Electrical design: primary voltage, secondary voltage, power and load conditions.
- Winding configuration: single or multiple secondary windings, taps and customized output arrangements.
- Insulation system: developed according to operating voltage, isolation and equipment requirements.
- Mechanical design: center-bolt, plate, bracket, enclosed and customized mounting structures.
- Lead configuration: wire length, insulation, color identification and connection arrangement can be specified by project.
Toroidal Transformer Constructions
KATOY manufactures toroidal transformers with different winding, insulation, lead, mounting and enclosure configurations. The products below illustrate representative custom structures rather than fixed catalog models.
Toroidal Transformer Structures for Different Equipment Designs
The appropriate toroidal transformer construction depends on electrical requirements as well as available installation space, chassis design, mounting method, wiring arrangement and assembly process.

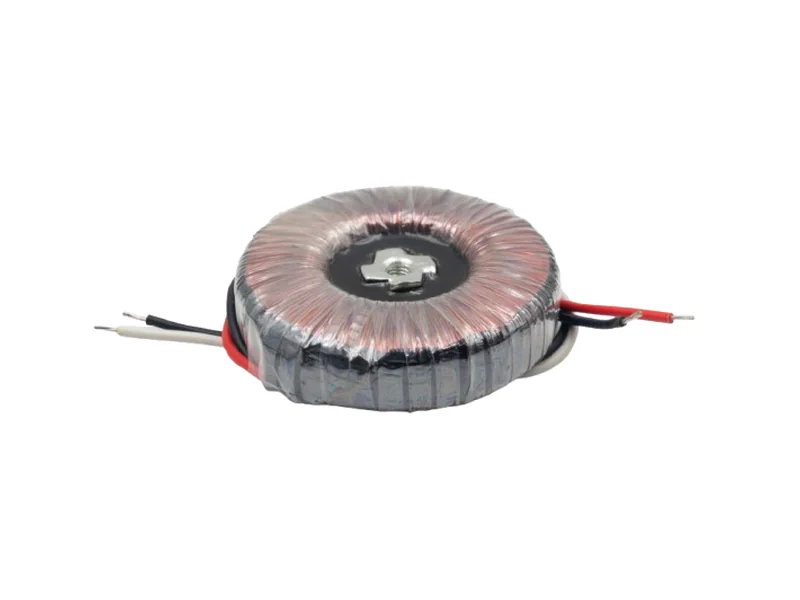

Center-bolt mounting provides a direct method for securing a toroidal transformer to an equipment chassis or mounting surface.

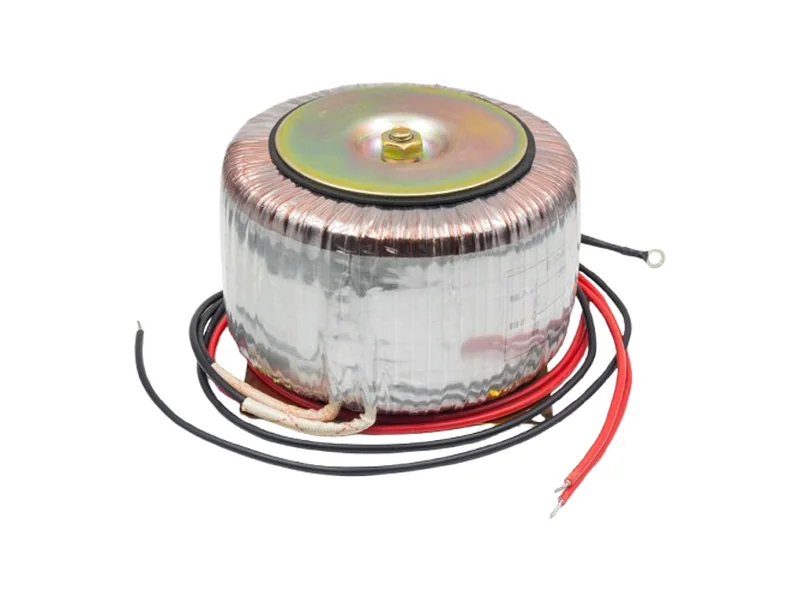

A customized mounting plate can simplify transformer installation where predefined mounting points or mechanical interfaces are required.

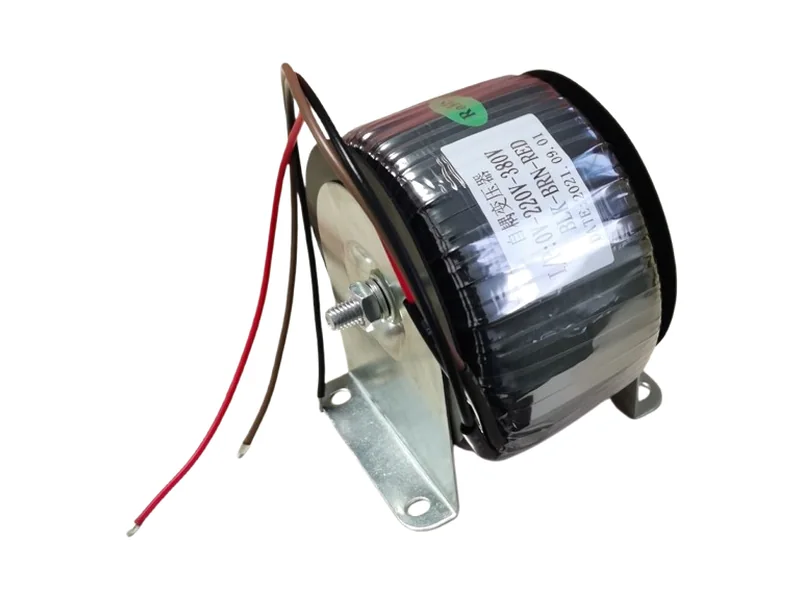

Brackets can be designed according to chassis space, transformer dimensions and equipment assembly requirements.

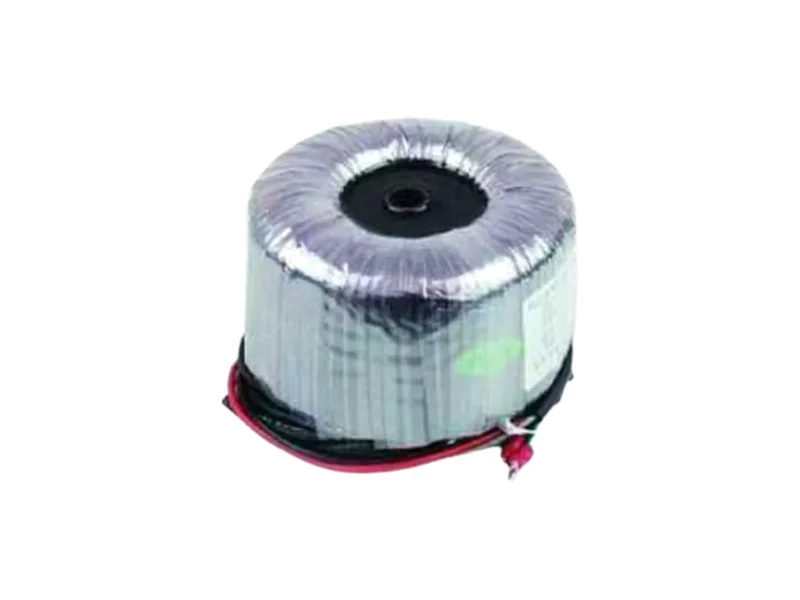

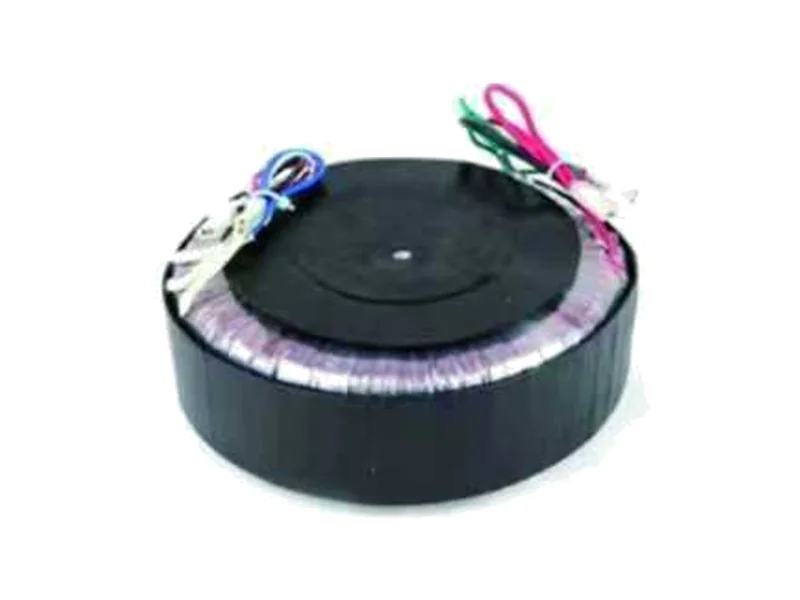

Enclosed constructions can be developed where the equipment requires additional mechanical protection or a defined mounting interface.

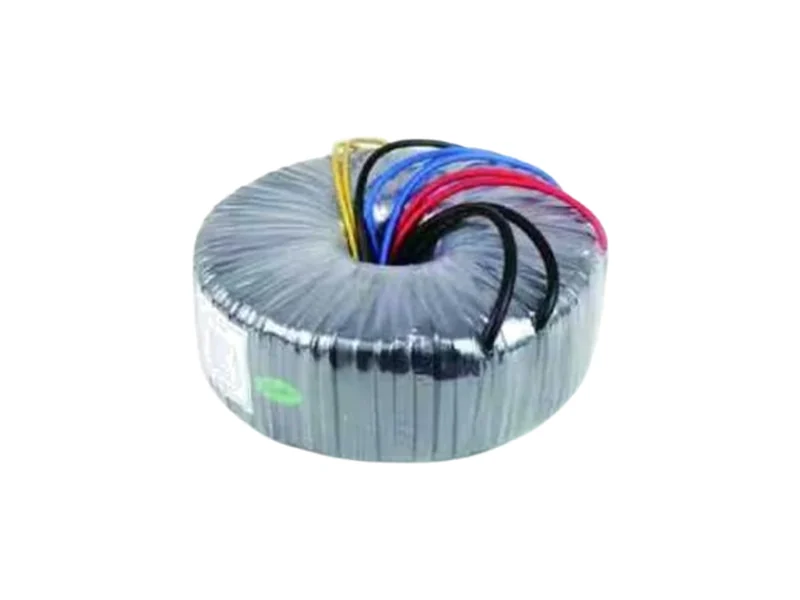

Multiple secondary windings, taps and customized winding arrangements can support equipment requiring more than one output voltage.

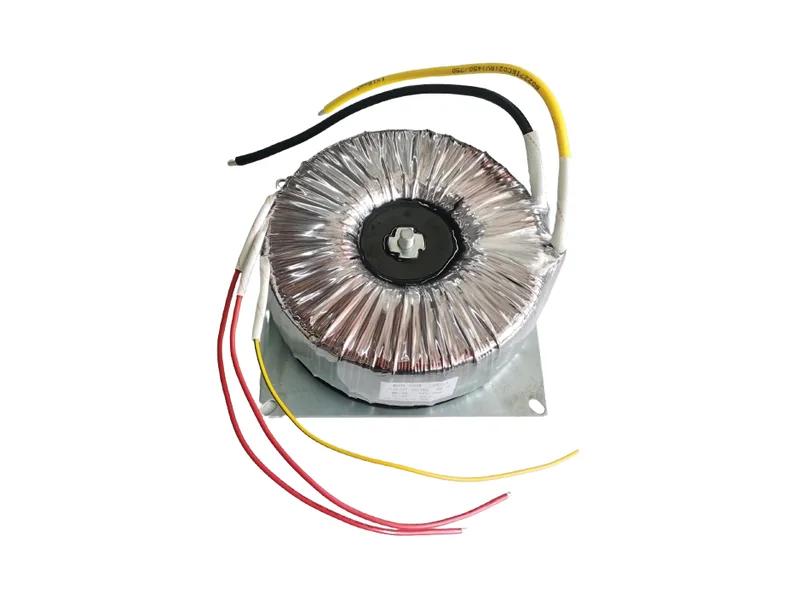

Lead length, insulation, identification and connection arrangement can be specified according to equipment assembly and wiring requirements.
Information for Custom Toroidal Transformer Development
Supplying complete electrical, thermal and mechanical information allows the transformer design to be evaluated more accurately before prototype development.
Custom Toroidal Transformers for Industrial and Electronic Equipment
Toroidal transformers can be developed for a broad range of equipment where customized voltage, power, mounting, winding and installation requirements must be integrated into the overall product design.
Toroidal Transformers for Professional Audio and Power Equipment
Toroidal transformers are frequently considered where equipment designers require a compact transformer structure and flexible mechanical integration. Professional audio equipment, industrial power supplies and specialized electronic systems may use toroidal transformer constructions depending on their electrical and installation requirements.
For these projects, the transformer should be evaluated as part of the complete equipment design. Voltage, load conditions, winding arrangement, insulation, temperature, mounting, dimensions and wiring requirements should be reviewed together before the final construction is defined.
Custom Toroidal Transformer Development from Specification to Production
As a custom toroidal transformer manufacturer, KATOY supports OEM projects from requirement review through electrical and mechanical design, prototype manufacturing, sample validation and recurring production.
Verification According to Toroidal Transformer Requirements
Toroidal transformer inspection and testing are performed according to the electrical, insulation, dimensional and mechanical requirements defined for the product.
Test items and acceptance criteria depend on the transformer design and customer specification rather than one fixed test profile for every application.
- Electrical parameter inspection
- Winding and lead verification
- Insulation-related testing as specified
- Visual and dimensional inspection
- Mounting and mechanical configuration verification
- Production process and quality control
Toroidal Transformer Questions
Common technical and sourcing questions about custom toroidal transformer design, construction, mounting and manufacturing.
What information is needed for a custom toroidal transformer?
Useful information includes primary and secondary voltages, rated power, operating frequency, winding configuration, insulation requirements, maximum dimensions, mounting method, wire-lead requirements and application information. Drawings or reference samples can also support technical evaluation.
Can toroidal transformers have multiple secondary windings?
Yes. Custom toroidal transformers can be developed with multiple secondary windings, taps or other winding arrangements according to the equipment circuit requirements.
What mounting options are available for toroidal transformers?
Depending on the equipment design, toroidal transformers can use center-bolt mounting, mounting plates, brackets, enclosed structures or other customized mechanical arrangements.
Can KATOY manufacture toroidal transformers from drawings or samples?
Yes. Projects can be evaluated from customer electrical specifications, drawings, existing transformer information or reference samples. Additional application information may be required before prototype development.
Can toroidal transformers be customized for professional audio equipment?
Yes. KATOY can develop toroidal transformer constructions for professional audio equipment according to the required electrical, winding, insulation, temperature, mechanical and installation conditions.
Can KATOY support both prototypes and recurring production?
KATOY supports custom toroidal transformer projects from requirement review and prototype development through sample validation and recurring manufacturing.
Need a Custom Toroidal Transformer?
Send your voltage, power, winding, insulation, dimensions, mounting and application requirements for engineering evaluation and quotation.
